| Power Capacity | 80W RMS |
| Throat Diameter | 25.4 mm (1”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 108dB |
| Usable Frequency Range | 1.5kHz-18kHz |
| Recommended Crossover | 2.5kHz 18db/oct |
| Voice Coil Diameter | 44.4 mm |
| Diaphragm Material | Titanium |
| Voice Coil Material | Edge Wound Copper Clad Alumimium Ribbon |
| Voice Coil Former | Resin Bonded Kapton |
| Horn Material | ABS with Glass Filled Black Polycarbonate |
| Nominal Coverage Angle | H90° x V40° (-6dB) |
| Horn Cut off Frequency | 600Hz |
| Mounting Cutout | W370 × H155 mm |
| Overall Dimensions | W424 × H194 × D205 mm |
| Weight | 3.45kg |

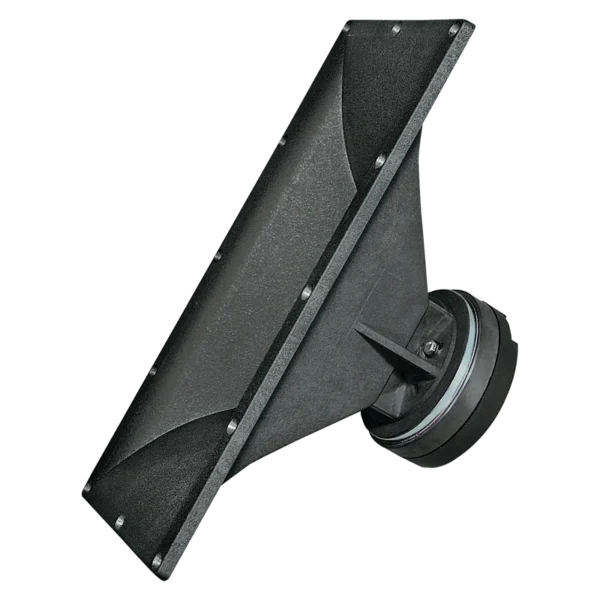

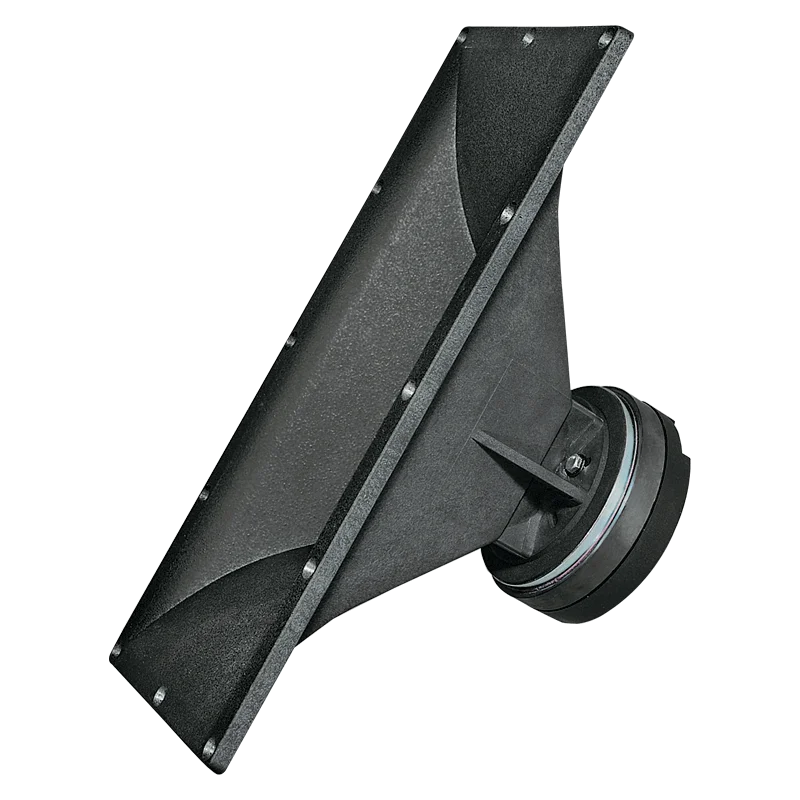

CDH-800, PA Compression Horn Drivers, Sound Systems, Speakers
CDH-800
80 WATTS
PA Compression Horn Driver
- Professional compression driver-horn CDH-800 loudspeaker, suitable for high power speaker systems. Owing to its titanium diaphragm the HF response is superb. Ideal for use with 2 nos. Low Frequency speakers AHUJA L15-MB300 to make a 600 watts speaker system. It can also be used with a single L15-MB300. The solid glass filled ABS horn has a very even radiation and excellent sound. Thus it is ideal for all indoor as well as outdoor PA and professional DJ applications.
₹4,999.00
Compare
- Professional compression driver-horn CDH-800 loudspeaker, suitable for high power speaker systems. Owing to its titanium diaphragm the HF response is superb. Ideal for use with 2 nos. Low Frequency speakers AHUJA L15-MB300 to make a 600 watts speaker system. It can also be used with a single L15-MB300. The solid glass filled ABS horn has a very even radiation and excellent sound. Thus it is ideal for all indoor as well as outdoor PA and professional DJ applications.
