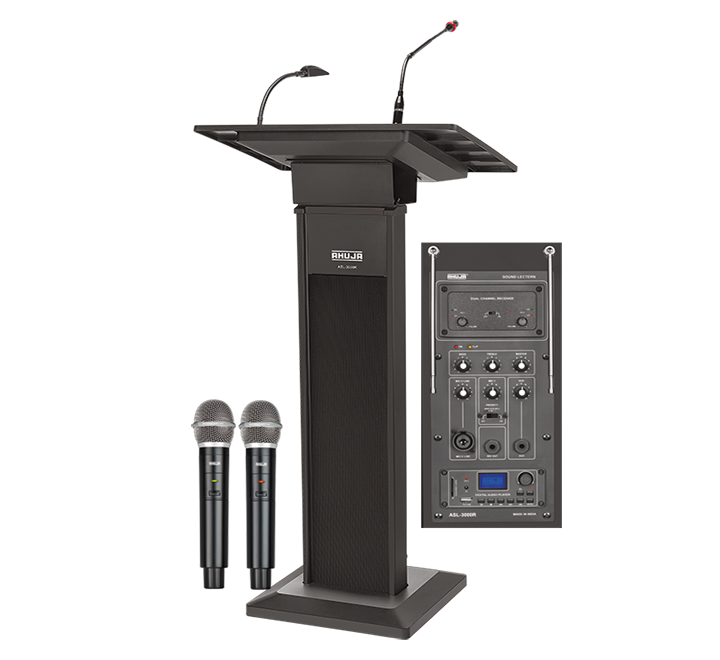

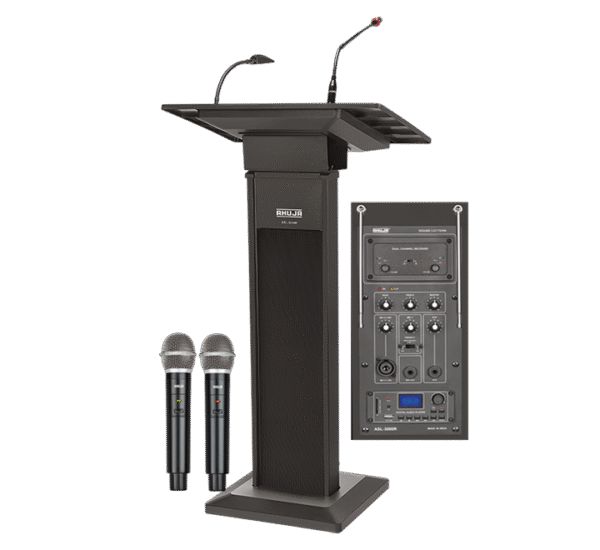

ASL-3000R

90 Watts
AC Operation
Compact, reliable and easy-to-assemble PA Lectern System with built-in 90W Class D amplifier.
Supplied with a 460mm (18”) detachable gooseneck condenser microphone and reading light, for the podium top.
Contains a built-in Dual Channel VHF wireless receiver and two nos. of VHF wireless handheld transmitters of different frequency.
Fitted with 3 nos. of 6.5” (165mm) coated dual cone speakers. Provision given for connecting external speaker, through an INT./EXT. speaker switch.
Combo socket for connecting a wired microphone through a 6.3mm (1/4”) phone plug or a line source through an XLR male plug.
Facility for connecting an auxiliary source through a 6.3mm (1/4”) phone plug.
Built-in digital MP3 recording, playback and Bluetooth facility. Recording or playback can be done using either a USB pen drive or a SD card. Remote for MP3 recorder is supplied along with.
Output connector for MIX OUT, through a 6.3mm (1/4”) phone socket, allowing the lectern system to be connected to external amplifiers for further amplification, if required.
Handheld wireless microphones & gooseneck podium microphone have voice priority over all other inputs. This feature can be switched ON or OFF through a slide switch.
Tonal adjustment can be done through cut-boost type Bass & Treble controls.
USB outlet on podium top for charging of Mobile phones.
Rugged & stable floor standing base. Mounting clamps are provided for fixing the product to the floor.
Operates on 240V AC 50Hz mains supply.
For assembly instructions see pages 5 & 6.
