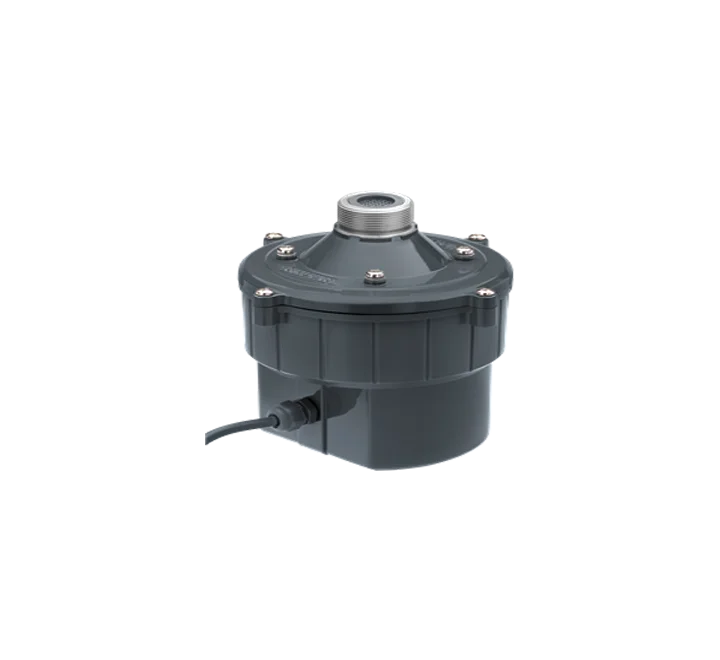

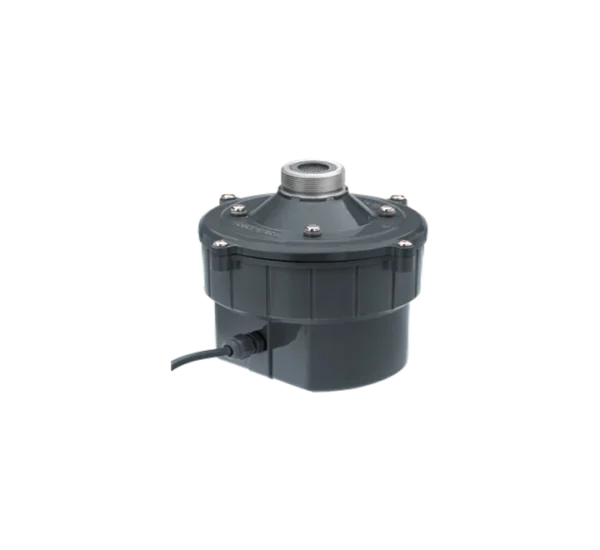

AU-50®XT
50W 100V
| Input Power | 50W RMS/70W Max. |
| Impedance/Power Taps | On 100V Line 200Ω/50W, 250Ω/40W 500Ω/20W, 1kΩ/10W 2kΩ/5W |
| Frequency Response | 160-7,000Hz |
| SPL at 1kHz | 113dB/1W/1m, 130dB/50W/1m |
| Temperature Range | -30°to + 70°C |
| Throat Coupling | 1-3/8” – 18TPI, Throat Couple No.1 |
| Dimensions | ø150 x H143 mm |
| Weight | 2.47kg |
| Material | Die-cast Aluminium Acoustic Head (Flange) |
AU-50®XT
50W
100V
- Weatherproof and rugged construction.
- High SPL, crisp penetrating sound.
- Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation.
- Models AU-50XT have a built-in 100V transformer with easily selectable power taps/impedance by changing the position of the rotary switch at the rear.
- Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use. Meets EN 60529.
